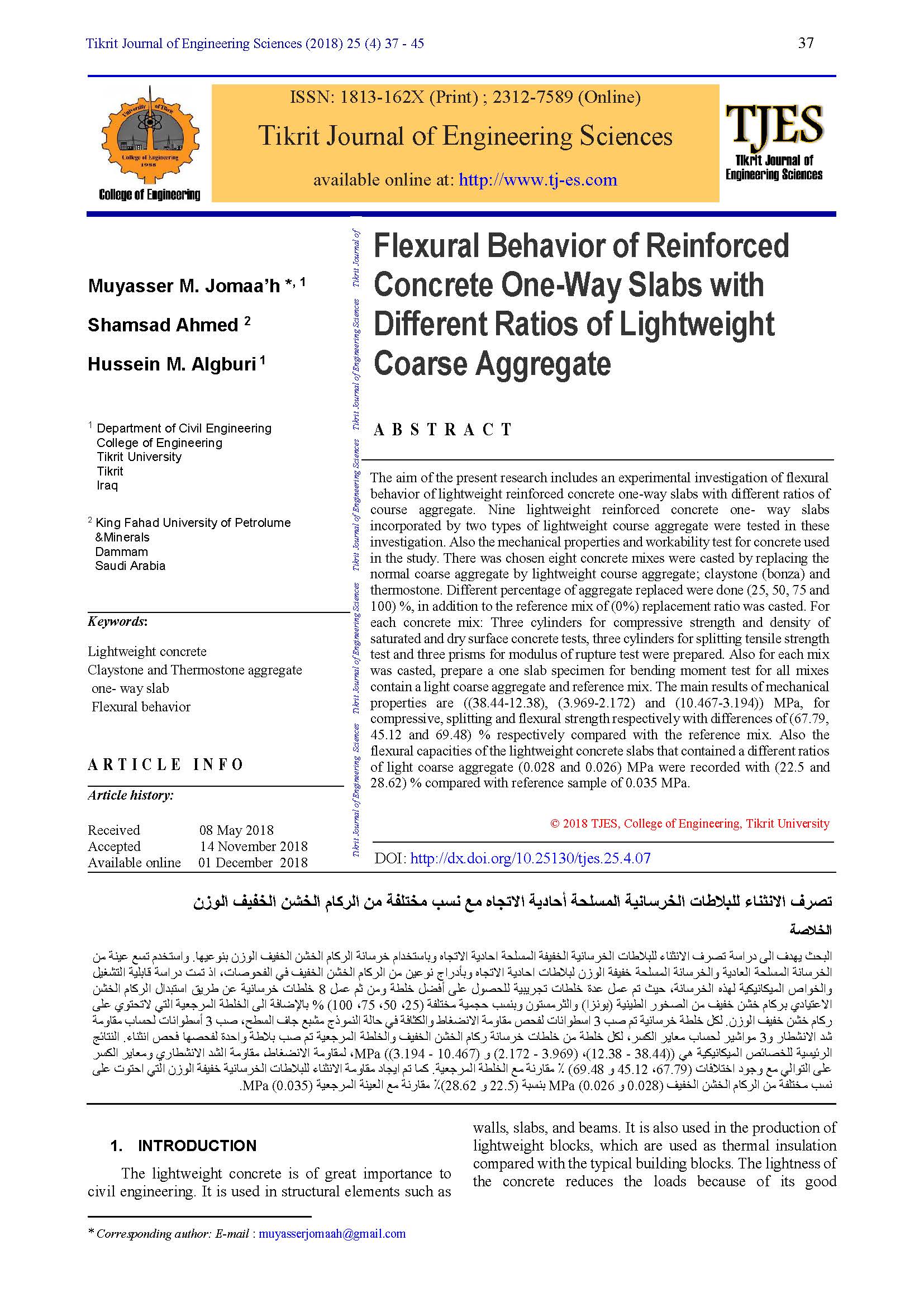

Flexural Behavior of Reinforced Concrete One-Way Slabs with Different Ratios of Lightweight Coarse Aggregate
Article Sidebar
Main Article Content
Abstract
The aim of the present research includes an experimental investigation of flexural behavior of lightweight reinforced concrete one-way slabs with different ratios of course aggregate. Nine lightweight reinforced concrete one- way slabs incorporated by two types of lightweight course aggregate were tested in these investigation. Also the mechanical properties and workability test for concrete used in the study. There was chosen eight concrete mixes were casted by replacing the normal coarse aggregate by lightweight course aggregate; claystone (bonza) and thermostone. Different percentage of aggregate replaced were done (25, 50, 75 and 100) %, in addition to the reference mix of (0%) replacement ratio was casted. For each concrete mix: Three cylinders for compressive strength and density of saturated and dry surface concrete tests, three cylinders for splitting tensile strength test and three prisms for modulus of rupture test were prepared. Also for each mix was casted, prepare a one slab specimen for bending moment test for all mixes contain a light coarse aggregate and reference mix. The main results of mechanical properties are ((38.44-12.38), (3.969-2.172) and (10.467-3.194)) MPa, for compressive, splitting and flexural strength respectively with differences of (67.79, 45.12 and 69.48) % respectively compared with the reference mix. Also the flexural capacities of the lightweight concrete slabs that contained a different ratios of light coarse aggregate (0.028 and 0.026) MPa were recorded with (22.5 and 28.62) % compared with reference sample of 0.035 MPa.
Metrics
Article Details
This work is licensed under a Creative Commons Attribution 4.0 International License.
THIS IS AN OPEN ACCESS ARTICLE UNDER THE CC BY LICENSE http://creativecommons.org/licenses/by/4.0/
Plaudit
References
Mahmoud I. The third chapter, concrete types. Egyptian Bookshop, 1st Ed.; 2002.
Iraqi Standard No. 5. Portland cement' central organization for standardization and quality control, Baghdad, 1984.
Iraqi Standard No. (45). Aggregate of natural resources used in concrete and construction. Central Agency for Standardization and Quality Control, Baghdad, 1984.
ASTM C330-04. Standard specification for light weight aggregates for structural concrete. Annual Book of ASTM Standards 2005; 04-02: 187-189.
Abdurrahman ARB, Mohammed ZA. Effect of high temperature on engineering properties of light weight blocks concrete. AL Rafdain Engineering Journal 2010; 18 (6): 1-9. DOI: https://doi.org/10.33899/rengj.2010.35165
ASTM A615/A615M -09. Standard specification for deformed and plain carbon-steel bars for concrete reinforcement.
ASTM C39-86. Compressive strength of cylindrical concrete specimens annual book of American society for testing and materials. Philadelphia Penurylrania 4: 19-23.
ASTM C 496 – 96. Standard test method for splitting tensile strength of cylindrical concrete specimens. 2004; 4 (2):.
ASTM designation C78-02. Stander test method for flexural strength of concrete (using samples beam with third point loading). 2004; 4 (2):.
Elavenil S, Samuel Knight GM. Behavior of steel fiber reinforced concrete beams and plates under static load. Journal of Research in Science, Computing, and Engineering 2007; 4 (3): 11-28. DOI: https://doi.org/10.3860/jrsce.v4i3.630
Al-Jawari RS. Behavior of reinforced concrete structures and reinforced carbon fiber fibers installed near the surface. Master Thesis, Mosul University; Iraq: 2010.
