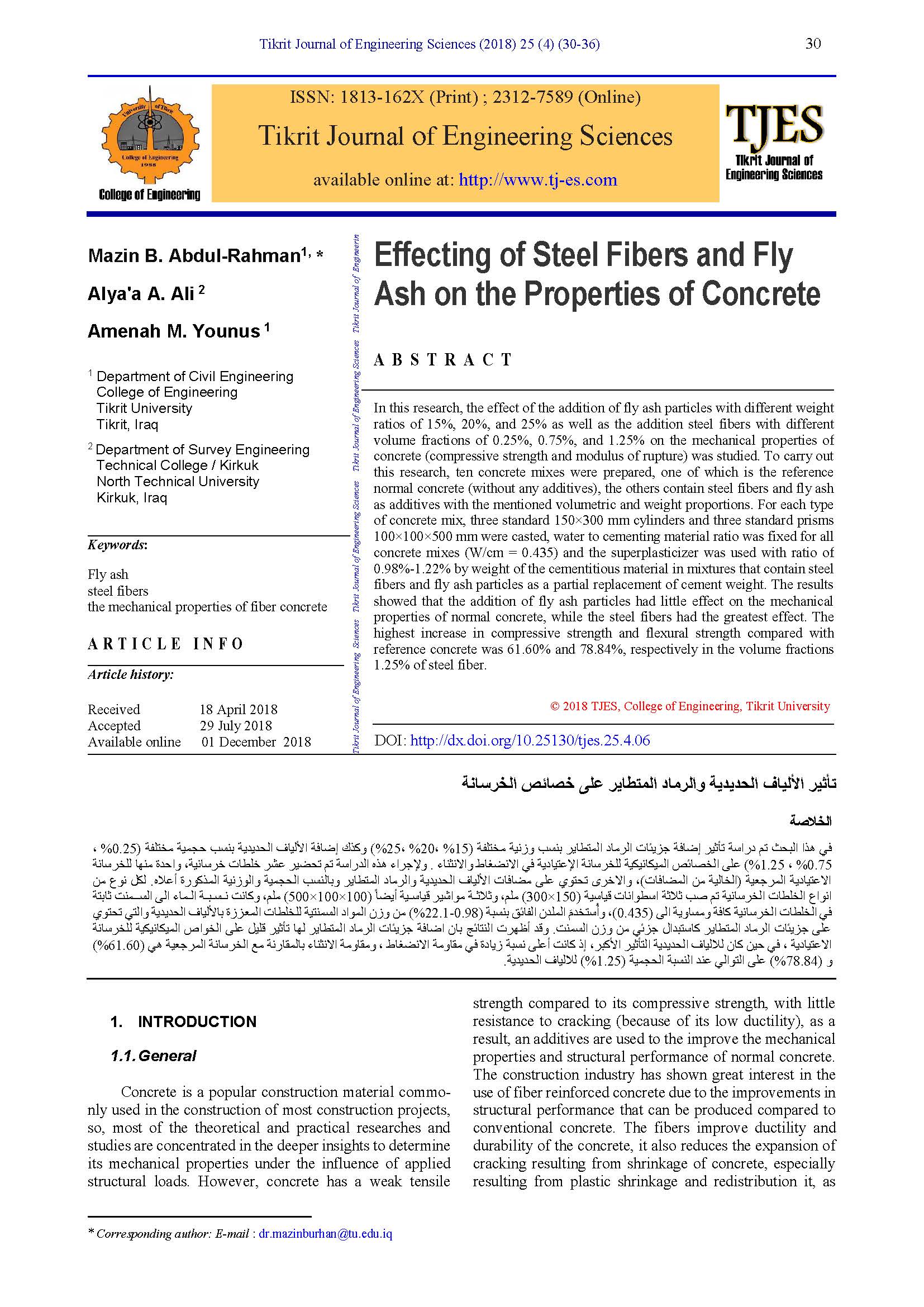

Effecting of Steel Fibers and Fly Ash on the Properties of Concrete
Article Sidebar
Main Article Content
Abstract
In this research, the effect of the addition of fly ash particles with different weight ratios of 15%, 20%, and 25% as well as the addition steel fibers with different volume fractions of 0.25%, 0.75%, and 1.25% on the mechanical properties of concrete (compressive strength and modulus of rupture) was studied. To carry out this research, ten concrete mixes were prepared, one of which is the reference normal concrete (without any additives), the others contain steel fibers and fly ash as additives with the mentioned volumetric and weight proportions. For each type of concrete mix, three standard 150×300 mm cylinders and three standard prisms 100×100×500 mm were casted, water to cementing material ratio was fixed for all concrete mixes (W/cm = 0.435) and the superplasticizer was used with ratio of 0.98%-1.22% by weight of the cementitious material in mixtures that contain steel fibers and fly ash particles as a partial replacement of cement weight. The results showed that the addition of fly ash particles had little effect on the mechanical properties of normal concrete, while the steel fibers had the greatest effect. The highest increase in compressive strength and flexural strength compared with reference concrete was 61.60% and 78.84%, respectively in the volume fractions 1.25% of steel fiber.
Metrics
Article Details
This work is licensed under a Creative Commons Attribution 4.0 International License.
THIS IS AN OPEN ACCESS ARTICLE UNDER THE CC BY LICENSE http://creativecommons.org/licenses/by/4.0/
Plaudit
References
Al-Bayati ESN. Flexural behavior of hybrid polypropylene and steel fiber reinforced concrete T-beam. MSc. Thesis. Tikrit University; Tikrit, Iraq: 2012.
Wang FS. Empirical study of slag cementitious material with high performance. Journal of Shandong Institute of Building Materials 2009; 3: 23-27.
Sood D, Kumbhar D, Rao PN. An experimental study on fly-ash based cement composite panels reinforced with varying number of mesh layers. Afro-Asian International Conference on Science, Engineering & Technology 2015: 584-587.
Attiya MA. Improving mechanical properties of modified concrete using micro-steel fiber and silica fume. Journal of Babylon University ,Engineering Sciences 2017; 25 (1): 212-223.
Almottiri FA. Physical properties of steel fiber reinforced cement composites made with fly ash. Jordan Journal of Civil Engineering 2011; 5 (2): 278-286.
ACI Committee 211,"Standard practice for selecting proportions for normal, heavy weight, and mass concrete (ACI 211.1-91). American Concrete Institute; 2002.
Iraqi Standard no. 5. Portland cement. Central Organization for Standardization and euality Control, 8 pp., Baghdad, Iraq:1984.
Iraqi Standard no. 45. Natural aggregate used for concrete and construction. Central Organization for Standardization and Quality Control: 4 pp., Baghdad, Iraq:1984.
ASTM C128–01. Standard test method for specific gravity and absorption of fine aggregate.
ASTM C29/C29M–97, (Re - approved 2003). Standard test method for bulk density (unit weight) and voids in aggregate. Annual Book of ASTM Standards 2004; 4 (2): 1-4.
ASTM C127–01. Standard test method for specific gravity and absorption of coarse aggregate.
ASTM C494-C494M-04. Standard specification for chemical admixtures for concrete: 2004.
ASTM C 618. Standard specification for coal fly ash and raw or calcined natural pozzolan for use as a mineral admixture in concrete. ASTM C618–00, Annual book ASTM standard 04.02; 2006.
PN-EN 450-1. Fly ash for concrete; 2006.
Adanagouda, HM Somasekharaiah, Shashi kumar B. Experimental investigation on strength characte-ristics of fly ash based high performance concrete with steel fiber and polypropylene fiber. International Journal of Innovative Research in Science, Engineering and Technology 2015; 4 (9): 8582-8589.
