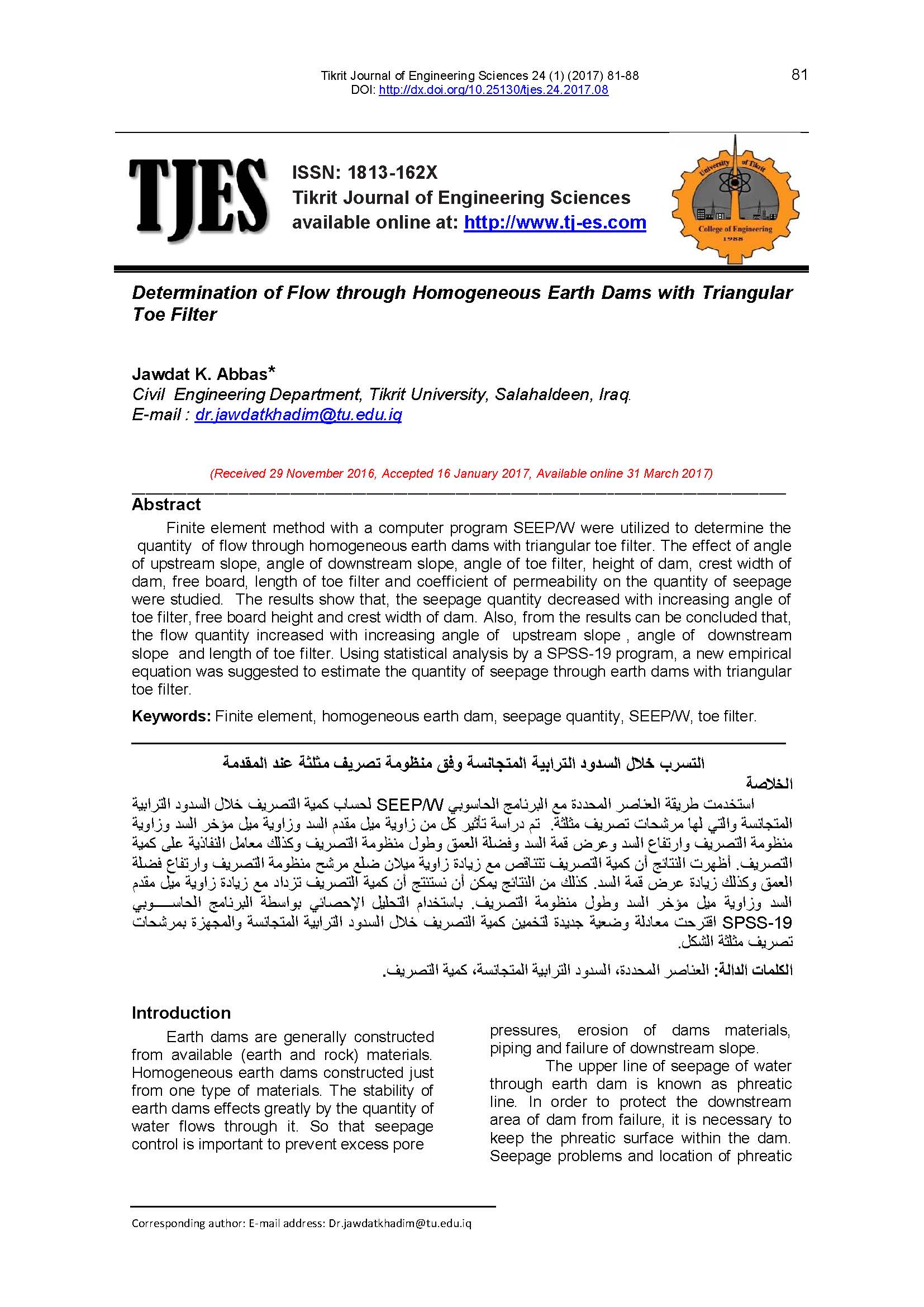

Determination of Flow through Homogeneous Earth Dams with Triangular Toe Filter
Article Sidebar
Main Article Content
Abstract
Finite element method with a computer program SEEP/W were utilized to determine the "quantity" of flow through homogeneous earth dams with triangular toe filter. The effect of angle of upstream slope, angle of downstream slope, angle of toe filter, height of dam, crest width of dam, free board, length of toe filter and coefficient of permeability on the quantity of seepage were studied. The results show that, the seepage quantity decreased with increasing angle of toe filter, free board height and crest width of dam. Also, from the results can be concluded that, the flow quantity increased with increasing angle of "upstream slope", angle of "downstream slope" and length of toe filter. Using statistical analysis by a SPSS-19 program, a new empirical equation was suggested to estimate the quantity of seepage through earth dams with triangular toe filter.
Metrics
Article Details
This work is licensed under a Creative Commons Attribution 4.0 International License.
THIS IS AN OPEN ACCESS ARTICLE UNDER THE CC BY LICENSE http://creativecommons.org/licenses/by/4.0/
Plaudit
References
Pavlovasky NN. Seepage through earth dams. Inst. Leningrad: Gidrotehniki I Melioratsii; 1956.
Mishra CG, Parida BP. Earth dam toe drain on an impervious base. International Journal of Geomechanics 2006;6(6):1. DOI: https://doi.org/10.1061/(ASCE)1532-3641(2006)6:6(379)
Harr ME. Ground water and seepage. New York: McGraw-Hill Book Company; 1962.
Kermani FE, Barani GA. Seepage analysis through earth dam based on finite difference method. Journal of Basic and Applied Scientific Research 2012;2(11):11621–11625.
Freeze RA. Influence of the unsaturated flow domain on seepage through earth dams. Water Resource Research 1971;7(4):929-941. DOI: https://doi.org/10.1029/WR007i004p00929
Dunbar SW, Sheahan TC. Seepage control remediation at hodges village dam. Journal of Geotechnical and
Geoenvironmental Engineering, ASCE 1999;125(3):198-206. DOI: https://doi.org/10.1061/(ASCE)1090-0241(1999)125:3(198)
Kasim F. Numerical parametric simulations for seepage flow behavior through earth fill dam. Journal |Keiuruteraan AWAM 2002;14(1).
Nasim S. Seepage analysis of earth dams by finite elements. M.Sc. Thesis. Kufa, Iraq: University of Kufa; 2007.
Kazemzadeh MJ. Unconfined seepage analysis in earth dams using smoothed fixed grid finite element method. International Journal for Numerical and Method in Geomechanics 2012;36(6):780- 797. DOI: https://doi.org/10.1002/nag.1029
Olande KA, Agbede OA. A study of seepage through oba dam using finite element method. Civil and Environmental Research 2013;3(3):53-60.
Abdel-Gawad, Shamaa. Seepage through earth dams with horizontal filters and founded on impervious foundation (numerical analysis with boundary element method). Alexandria Engineering Journal 2004;43(6).
An Engineering Methodology, "Seepage Modeling with SEEP/W", GEO-SLOPE International Ltd., 2007.
Singh AK. Analysis of flow in a horizontal toe filter. International Association for Computer Methods and Advances in Geomechanics (IACMAG) 2008:2449-2455.
Khattab, SAA. Stability analysis of Mousl dam under saturated and unsaturated soil conditions. Al-Rafidain Engineering Journal 2009;18(1). DOI: https://doi.org/10.33899/rengj.2010.27983
Zomorodian ASM, Abodollahzadeh, MS. Effect of horizontal drains on upstream slope stability during rapid drawdown condition. International Journal of Geology 2010;4(4):85-90.
Arshed I, Babar MM. Compression of SEEP/W simulation with field observation for seepage analysis through earth dam. International Journal of Research 2014;7(1).
