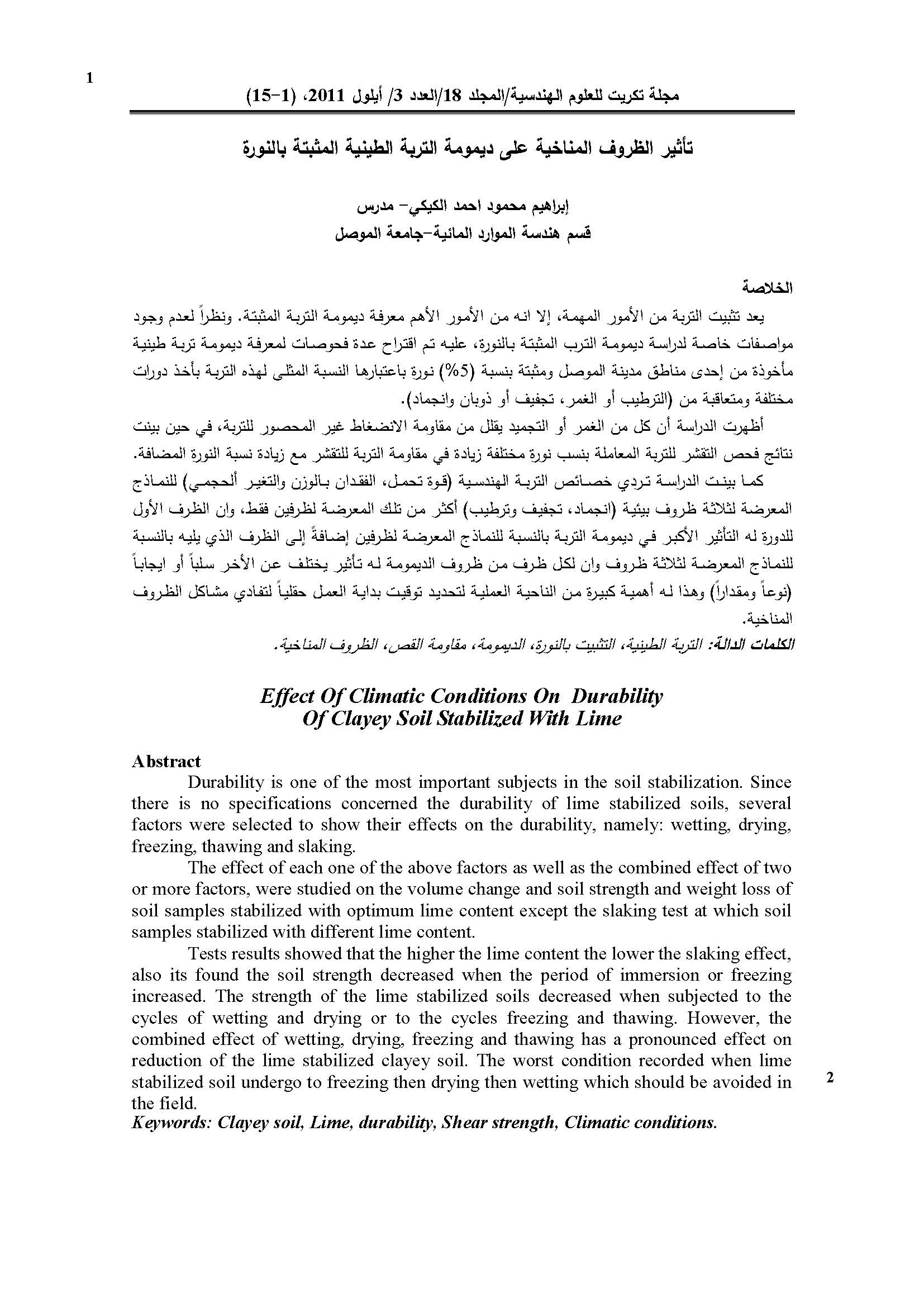

Effect of Climatic Conditions on Durability of Clayey Soil Stabilized with Lime
Article Sidebar
Main Article Content
Abstract
Durability is one of the most important subjects in the soil stabilization. Since there is no specifications concerned the durability of lime-stabilized soils, several factors were selected to show their effects on the durability, namely: wetting, drying, freezing, thawing and slaking.
The effect of each one of the above factors as well as the combined effect of two or more factors were studied on the volume change and soil strength and weight loss of soil samples stabilized with optimum lime content except the slaking test at which soil samples stabilized with different lime content.
Tests results showed that the higher the lime content the lower the slaking effect, also its found the soil strength decreased when the period of immersion or freezing increased. The strength of the lime stabilized soils decreased when subjected to the cycles of wetting and drying or to the cycles freezing and thawing. However, the combined effect of wetting, drying, freezing and thawing has a pronounced effect on reduction of the lime stabilized clayey soil. The worst condition recorded when lime stabilized soil undergo to freezing then drying then wetting which should be avoided in the field.
Metrics
Article Details
This work is licensed under a Creative Commons Attribution 4.0 International License.
THIS IS AN OPEN ACCESS ARTICLE UNDER THE CC BY LICENSE http://creativecommons.org/licenses/by/4.0/
Plaudit
References
Dempsey, B. J & Thompson, M. R “Durability Properties of Lime-Soil Mixtures”, Highway Research Record, No. 235, pp. 61-75, 1968.
عطا الله، موفق عبو عواد ” فحص الديمومة للترب الجبسية المثبتة بالنورة تحت الأحمال ” رسالة ماجستير، كلية الهندسة، جامعة الموصل،2005.
Bhattacharja, S.; Bhatty, J.I & Todres, H.A. “Stabilization of Clay Soils by Portland cement or Lime A critical Review of Literature”, Portland Cement Association, PCA.R&D Serial No. 2066.PP (1-38).2003.
Kodikara, J. ; Barbour, S.L & Fredlund, D.G. “Changes in Clay Structure and Behavior due to Wetting and Drying”, Proceeding of the 8th Australian-Newzland Conference on Geomechanics,Hobart.Tasania,pp.179-186,1999.
Little, D.N. “Handbook for Stabilization of Pavement Sub Grade and Base Courses with Lime”, Kendall Hunt Publishing Company, Iowa, USA, by National Lime Association, 1995.
الداؤود، أسماء أحمد علي ” تأثير ظروف الإنضاج على بعض الخواص الهندسية لتربة طينية معاملة بالنورة “، رسالة ماجستير ، كلية الهندسة ، جامعة الموصل،2006.
Chapman, D. R. “Shale classification test and systems: a comparative study” Journal Highway Research Project. JHRP-75-11, Purdue University, 1975. DOI: https://doi.org/10.5703/1288284313897
S. A. A., Al-KiKi, I. M. A, and Al-Juari, K. A. K. “ Strength, Durability and Hydraulic Properties of Clayey Soil Stabilized with Lime and Industrial Waste Lime” Journal of Al-Rafidain Engg., Vol. 16, No. 1, PP. 102-116, 2006. DOI: https://doi.org/10.33899/rengj.2008.44026
محمد، ربيع أياد ” تأثير الديمومة في مقاومة الشد ” رسالة ماجستير، كلية الهندسة، جامعة الموصل2008, 9.
Al-Obydi, M. A. “Lime Stabilization of Gypseous Soils”, M.Sc. Thesis, Civil Engineering Department, College of Engineering, University of Mosul, 1992.
ايشو ، باسل كوركيس ” تثبيت التربة الجبسية باستخدام النورة والمستحلب الإسفلتي” ، رسالة ماجستير ، كلية الهندسة، جامعة الموصل،2004. 11.
الزبيدي، عبد الرحمن هاني طه ” دراسة مقاومة الشد للتربة الجبسية الحاوية على نسبة عالية من الأملاح الذائبة والمثبتة بالنورة ” رسالة ماجستير، كلية الهندسة، جامعة الموصل،2007.
Rao, S. M. and Shivananda, P. “Swelling behavior of lime-stabilized specimens after multi-wetting and drying cycles” Workshop in clay Behavior Chemo-Mechanical Coupling from Nano-Structure to Engineering Application, Vol.2, Italy,
حسين، يوسف عبدالله ” ديمومة الترب الجبسية المثبتة بالنورة ” رسالة ماجستير، كلية الهندسة، جامعة الموصل،14.2005.
الطائي، ليث خليل إبراهيم ” العلاقة بين اجهادات المص وبعض الخصائص الهندسية لتربة طينية انتفاخية مثبتة بالنورة من مدينة الموصل ” رسالة ماجستير، كلية الهندسة ، جامعة الموصل،2005.
Goodman, Richard E. “Introduction to rock mechanics” John Willy, New York, Xii, 478p.illus.1980.
Faluyi, S. O. and Amu, O. O “Effects of Lime Stabilization on the PH Values of Lateritic Soils in Ado-Ekiti, Nigeria”, American Journal of Applied Sciences, Vol.5, No.1, PP. 192-194,2005. DOI: https://doi.org/10.3923/jas.2005.192.194
Little, D. N. “Evaluation of Structural Properties of Stabilized Soils and Aggregates” Vol. 1, Summary of findings, Prepared for the national lime 1999.
Packard R. G. and Chapman G. A. “developments in durability testing of soil-cement mixtures” Highway Research Record No.36, pp. 97-117,1963.
