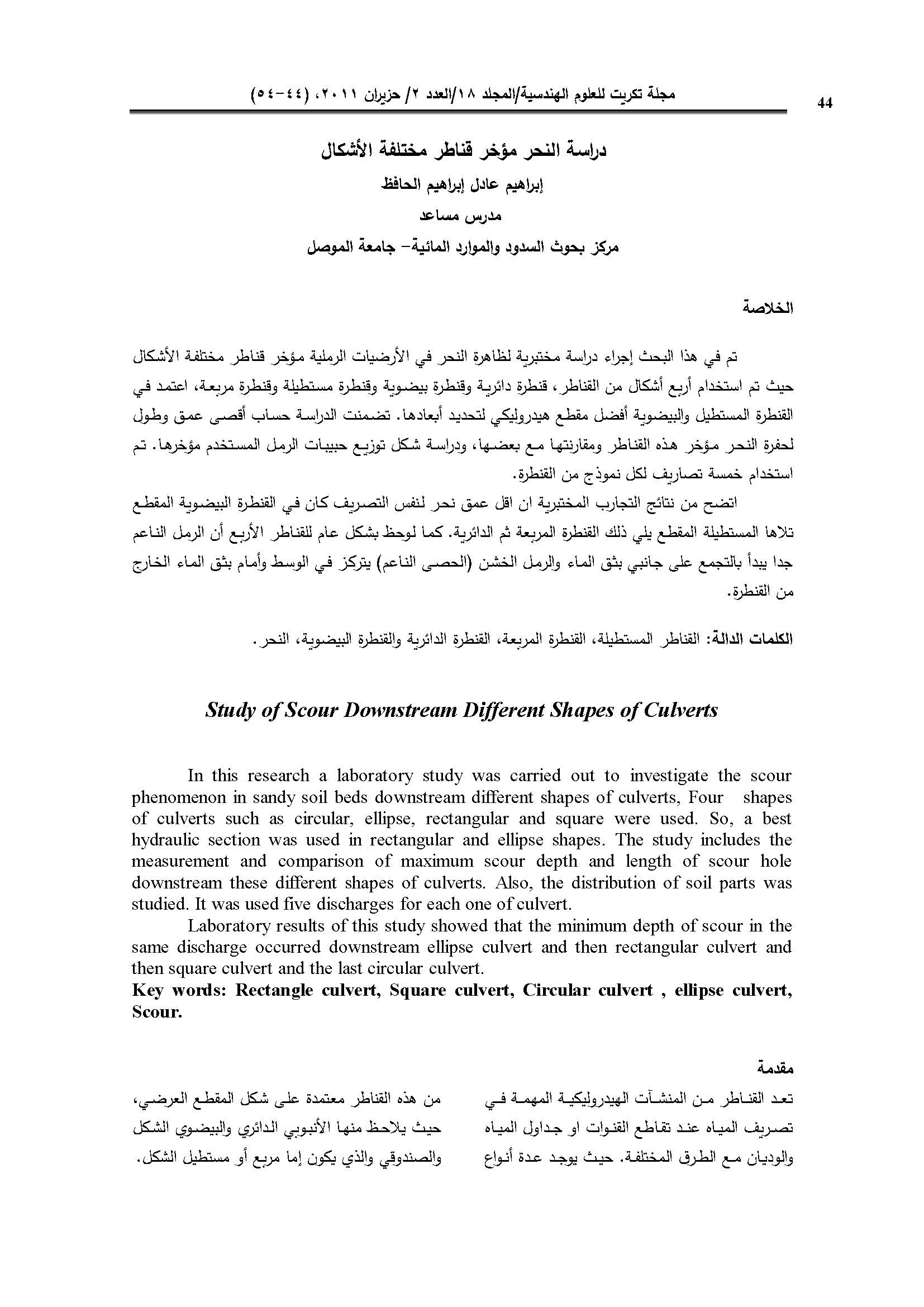

Study of Scour Downstream Different Shapes of Culverts
Article Sidebar
Main Article Content
Abstract
In this research a laboratory study was carried out to investigate the scour phenomenon in sandy soil beds downstream different shapes of culverts, Four shapes of culverts such as circular, ellipse, rectangular and square were used. So, a best hydraulic section was used in rectangular and ellipse shapes. The study includes the measurement and comparison of maximum scour depth and length of scour hole downstream these different shapes of culverts. Also, the distribution of soil parts was studied. It was used five discharges for each one of culvert.
Laboratory results of this study showed that the minimum depth of scour in the same discharge occurred downstream ellipse culvert and then rectangular culvert and then square culvert and the last circular culvert.
Article Details
Section
This work is licensed under a Creative Commons Attribution 4.0 International License.
THIS IS AN OPEN ACCESS ARTICLE UNDER THE CC BY LICENSE http://creativecommons.org/licenses/by/4.0/
References
A.K., “Fluid Mechanics”, Romesh Chander Khanna, Dahlia, India, 1980.
British Standard Institution. “Methods of Measurement of Liquid Flow in Open Channel”, London, England, BS3680, (Part A), 1985.
Liriano, S.L. and Day R.A., “Scour at Culvert Outlets as Influenced by the Turbulent Flow Structure”. Journal of Hydraulic Research, Vol.40, No.3, 2002.
Mazurek, K.A. “Scour of Cohesive Soil by Submerged Plane Turbulent Wall Jets”. Journal of Hydraulic Research, Vol.41, No.2, 2003.
الجبوري، موفق يونس واخرون ، “دراسة مختبرية للنحر مؤخر القناطر الأنبوبية”، المؤتمر الدوري لمركز بحوث السدود والموارد المائية، جامعة الموصل، (2008).
